MidiDriver Class Reference

The Basic High Level Pentagram Midi Driver interface. More...

#include <MidiDriver.h>

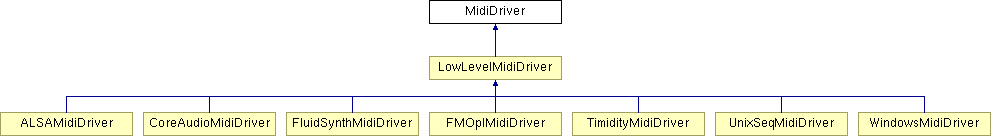

Inheritance diagram for MidiDriver:


Public Types
	TIMBRE_LIBRARY_U7VOICE_AD = 0
	TIMBRE_LIBRARY_U7VOICE_MT = 1
	TIMBRE_LIBRARY_XMIDI_AD = 2
	TIMBRE_LIBRARY_XMIDI_MT = 3
	TIMBRE_LIBRARY_SYX_FILE = 4
	TIMBRE_LIBRARY_XMIDI_FILE = 5
	TIMBRE_LIBRARY_FMOPL_SETGM = 6
enum	TimbreLibraryType { TIMBRE_LIBRARY_U7VOICE_AD = 0, TIMBRE_LIBRARY_U7VOICE_MT = 1, TIMBRE_LIBRARY_XMIDI_AD = 2, TIMBRE_LIBRARY_XMIDI_MT = 3, TIMBRE_LIBRARY_SYX_FILE = 4, TIMBRE_LIBRARY_XMIDI_FILE = 5, TIMBRE_LIBRARY_FMOPL_SETGM = 6 }
Public Member Functions
virtual int	initMidiDriver (uint32 sample_rate, bool stereo)=0
virtual void	destroyMidiDriver ()=0
bool	isInitialized ()
virtual int	maxSequences ()=0
virtual void	setGlobalVolume (int vol)=0
virtual void	startSequence (int seq_num, XMidiEventList *list, bool repeat, int vol, int branch=-1)=0
virtual void	finishSequence (int seq_num)=0
virtual void	pauseSequence (int seq_num)=0
virtual void	unpauseSequence (int seq_num)=0
virtual void	setSequenceVolume (int seq_num, int vol)=0
virtual void	setSequenceSpeed (int seq_num, int speed)=0
virtual bool	isSequencePlaying (int seq_num)=0
virtual uint32	getSequenceCallbackData (int seq_num)
virtual bool	isSampleProducer ()
virtual void	produceSamples (sint16 *samples, uint32 bytes)
virtual bool	isFMSynth ()
virtual bool	isMT32 ()
virtual bool	noTimbreSupport ()
virtual void	loadTimbreLibrary (IDataSource *, TimbreLibraryType type)
virtual	~MidiDriver ()
Static Public Member Functions
static int	getDriverCount ()
static std::string	getDriverName (uint32 index)
static MidiDriver *	createInstance (std::string driverName, uint32 sample_rate, bool stereo)
Protected Member Functions
	MidiDriver ()
std::string	getConfigSetting (std::string name, std::string defaultval)
Protected Attributes
bool	initialized
Classes
struct	MidiDriverDesc
	Midi driver desription. More...

Detailed Description

The Basic High Level Pentagram Midi Driver interface.

Definition at line 26 of file MidiDriver.h.

Member Enumeration Documentation

enum MidiDriver::TimbreLibraryType

Enumerator:

TIMBRE_LIBRARY_U7VOICE_AD
TIMBRE_LIBRARY_U7VOICE_MT
TIMBRE_LIBRARY_XMIDI_AD
TIMBRE_LIBRARY_XMIDI_MT
TIMBRE_LIBRARY_SYX_FILE
TIMBRE_LIBRARY_XMIDI_FILE
TIMBRE_LIBRARY_FMOPL_SETGM

Definition at line 41 of file MidiDriver.h.

Constructor & Destructor Documentation

MidiDriver::MidiDriver ( ) [inline, protected]

Definition at line 30 of file MidiDriver.h.

virtual MidiDriver::~MidiDriver ( ) [inline, virtual]

Destructor.

Definition at line 130 of file MidiDriver.h.

Member Function Documentation

MidiDriver * MidiDriver::createInstance	(	std::string	driverName,
		uint32	sample_rate,
		bool	stereo
	)			`[static]`

Create an Instance of a MidiDriver

Parameters:

driverName

Name of the prefered driver to create

Returns:: The created MidiDriver instance

Definition at line 125 of file MidiDriver.cpp.

References createInstance(), initMidiDriver(), InitMidiDriverVector(), midi_drivers, pout, and Pentagram::strcasecmp().

Referenced by createInstance(), and Pentagram::AudioMixer::openMidiOutput().

virtual void MidiDriver::destroyMidiDriver ( ) [pure virtual]

Destroy the driver.

Implemented in LowLevelMidiDriver.

Referenced by Pentagram::AudioMixer::closeMidiOutput().

virtual void MidiDriver::finishSequence ( int seq_num ) [pure virtual]

Finish playing a sequence, and free the data

Parameters:

seq_num

The Sequence number to stop

Implemented in LowLevelMidiDriver.

Referenced by MusicProcess::playMusic_internal(), Pentagram::AudioMixer::reset(), and MusicProcess::run().

std::string MidiDriver::getConfigSetting	(	std::string	name,
		std::string	defaultval
	)			`[protected]`

Get a configuration setting for the midi driver.

Definition at line 199 of file MidiDriver.cpp.

Referenced by WindowsMidiDriver::open(), FluidSynthMidiDriver::open(), ALSAMidiDriver::open(), and UnixSeqMidiDriver::UnixSeqMidiDriver().

int MidiDriver::getDriverCount ( ) [static]

Get the number of devices.

Definition at line 108 of file MidiDriver.cpp.

References InitMidiDriverVector(), and midi_drivers.

std::string MidiDriver::getDriverName ( uint32 index ) [static]

Get the name of a driver

Parameters:

index

Driver number

Definition at line 115 of file MidiDriver.cpp.

References InitMidiDriverVector(), and midi_drivers.

virtual uint32 MidiDriver::getSequenceCallbackData ( int seq_num ) [inline, virtual]

Get the callback data for a specified sequence

Parameters:

seq_num

The Sequence to get callback data from

Reimplemented in LowLevelMidiDriver.

Definition at line 107 of file MidiDriver.h.

Referenced by MusicProcess::playMusic_internal().

virtual int MidiDriver::initMidiDriver	(	uint32	sample_rate,
		bool	stereo
	)			`[pure virtual]`

Initialize the driver

Parameters:

	sample_rate	The sample rate for software synths
	stereo	Specifies if a software synth must produce stero sound

Returns:: Non zero on failure

Implemented in LowLevelMidiDriver.

Referenced by createInstance().

virtual bool MidiDriver::isFMSynth ( ) [inline, virtual]

Is this a FM Synth and should use the Adlib Tracks?

Reimplemented in FMOplMidiDriver.

Definition at line 118 of file MidiDriver.h.

Referenced by MusicProcess::playMusic_internal(), and MusicProcess::run().

bool MidiDriver::isInitialized ( ) [inline]

Definition at line 60 of file MidiDriver.h.

References initialized.

virtual bool MidiDriver::isMT32 ( ) [inline, virtual]

Is this a MT32 and supports MT32 SysEx?

Definition at line 121 of file MidiDriver.h.

virtual bool MidiDriver::isSampleProducer ( ) [inline, virtual]

Is this a Software Synth/Sample producer.

Reimplemented in FluidSynthMidiDriver, FMOplMidiDriver, and TimidityMidiDriver.

Definition at line 110 of file MidiDriver.h.

Referenced by LowLevelMidiDriver::destroyMidiDriver(), LowLevelMidiDriver::initMidiDriver(), and Pentagram::AudioMixer::MixAudio().

virtual bool MidiDriver::isSequencePlaying ( int seq_num ) [pure virtual]

Check to see if a sequence is playing (doesn't check for pause state)

Parameters:

seq_num

The Sequence number to check

Returns:: true is sequence is playing, false if not playing

Implemented in LowLevelMidiDriver.

Referenced by MusicProcess::playMusic_internal(), and MusicProcess::run().

virtual void MidiDriver::loadTimbreLibrary	(	IDataSource *	,
		TimbreLibraryType	type
	)			`[inline, virtual]`

Load the Timbre Library.

Definition at line 127 of file MidiDriver.h.

virtual int MidiDriver::maxSequences ( ) [pure virtual]

Get the maximum number of playing sequences supported by this this driver

Returns:: The maximum number of playing sequences

Implemented in LowLevelMidiDriver.

Referenced by Pentagram::AudioMixer::reset().

virtual bool MidiDriver::noTimbreSupport ( ) [inline, virtual]

Is this a devices that does not Timbres?

Reimplemented in FluidSynthMidiDriver, and TimidityMidiDriver.

Definition at line 124 of file MidiDriver.h.

virtual void MidiDriver::pauseSequence ( int seq_num ) [pure virtual]

Pause the playback of a sequence

Parameters:

seq_num

The Sequence number to pause

Implemented in LowLevelMidiDriver.

Referenced by MusicProcess::run().

virtual void MidiDriver::produceSamples	(	sint16 *	samples,
		uint32	bytes
	)			`[inline, virtual]`

Produce Samples when doing Software Synthesizing

Parameters:

	samples	The buffer to fill with samples
	bytes	The number of bytes of music to produce

Reimplemented in LowLevelMidiDriver.

Definition at line 115 of file MidiDriver.h.

Referenced by Pentagram::AudioMixer::MixAudio().

virtual void MidiDriver::setGlobalVolume ( int vol ) [pure virtual]

Set the global volume level

Parameters:

vol

The new global volume level (0-255)

Implemented in LowLevelMidiDriver.

Referenced by Pentagram::AudioMixer::openMidiOutput().

virtual void MidiDriver::setSequenceSpeed	(	int	seq_num,
		int	speed
	)			`[pure virtual]`

Set the speed of a sequence

Parameters:

	seq_num	The Sequence number to change it's speed
	speed	The new speed for the sequence (percentage)

Implemented in LowLevelMidiDriver.

Referenced by MusicProcess::playMusic_internal().

virtual void MidiDriver::setSequenceVolume	(	int	seq_num,
		int	vol
	)			`[pure virtual]`

Set the volume of a sequence

Parameters:

	seq_num	The Sequence number to set the volume for
	vol	The new volume level for the sequence (0-255)

Implemented in LowLevelMidiDriver.

virtual void MidiDriver::startSequence	(	int	seq_num,
		XMidiEventList *	list,
		bool	repeat,
		int	vol,
		int	branch = `-1`
	)			`[pure virtual]`

Start playing a sequence

Parameters:

	seq_num	The Sequence number to use.
	list	The XMidiEventList to play
	repeat	If true, endlessly repeat the track
	activate	If true, set the sequence as active
	vol	The volume level to start playing the sequence at (0-255)
